TL-mix6 Mixer Test Lead

Your discount: -18%
Availability: In Stock

  • 41.00 USD33.50 USD


Short Attributes
Manufacturer ROTKEE (Ukraine)
Total Cable Length 2.5 m (8.2 ft)
Output Cable Connector BNC
Number Of Inputs 6
All Attributes

The mixer test lead can be connected to electromagnetic injectors, primary circuit or control signal of individual ignition coils. It allows you to record a signal from up to six sources at the same time, using only one analog input of the oscilloscope.

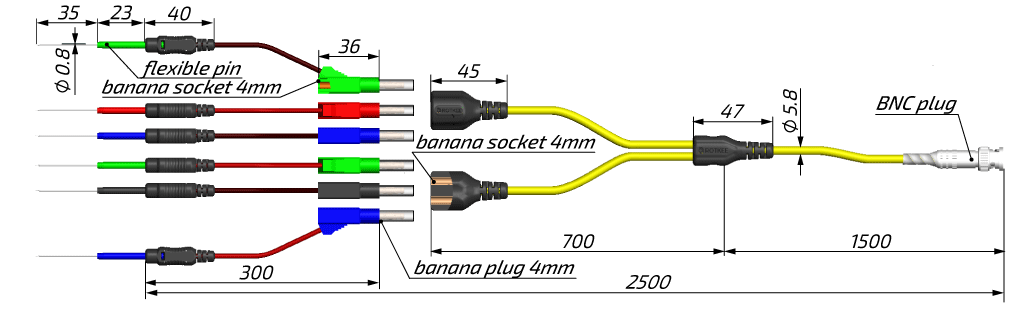

The Test Lead Design

TL-mix6 Test Lead Design

Items Included

  • mixer test lead - 1 pc
  • replacement flexible pin lead probe - 6pcs

Using 6 test leads allows you to make measurements on 6 ignition coils or injectors at a time, and therefore you can analyze the signals directly from all the cylinders of the engine. The pulses of ignition coil control as well as the injector control pulses from different cylinders never occur at the same time, which allows summing signals from all the test leads in order to get one signal at the output with a series of sequential pulses identifying the ignition system as a whole.

NB! The test lead doesn’t have a separate grounding terminal; therefore, an additional grounding wire of the oscilloscope is required.

The mixer test lead is specially designed for making measurements in internal combustion engines and allows you to work comfortably with in-line, V-shaped and opposing engines. A soft cable with a high density braided copper shield to minimize noise pickup so you can get high accuracy of the measured signal.The replacement leads are made of a flexible PVC cable. A flexible lead pin is ideal for connecting an oscilloscope to automotive connectors as well as other recessed areas. A thin pin and a handy holder allow connecting to virtually any connector without damaging the circuit and wiring insulation. The spring prevents the pin from accidental breakage.

The test lead is compatible with any automotive oscilloscope.

Waveforms samples

Video Tutorials

Catching multipoint injectors waveform of Subaru Impreza 2010 2.0 EJ204 using TL-mix4 mixer test lead and MT Pro automotive oscilloscope. Wiring diagram, test probe connection, oscilloscope setup, waveform record procedure on idling and wide-open throttle.


Manufacturer

Manufacturer ROTKEE (Ukraine)

Mechanical characteristics

Total Cable Length 2.5 m (8.2 ft)
Output Cable Connector BNC
Replacement Lead Connector 4 mm “banana”
Pin dimensions ⌀0.8x34 mm
Weight 260 g

Electrical characteristics

Number Of Inputs 6
