PS16 In-Cylinder Pressure Transducer for Petrol Engine

Availability: In Stock

  • 89.00 USD


Short Attributes
Manufacturer ROTKEE (Ukraine)
Total Cable Length 2.5 m (8.2 ft)
Output Cable Connector BNC
Supply Voltage 11 to 25 V
Output Signal Type analog
Pressure Ranges -1 to 16 bar (-14.5 to 232 PSI)
Overload Pressure 24 bar (348 PSI)
All Attributes

The sensor measures cylinder compression, intake manifold vacuum, back pressure. All these measurements can be made in one hit. These parameters allow detecting airflows from the combustion chamber, as well as determining the working phases of the valve timing. It is also possible to carry out measurements in other engine systems, within the working range of the sensor, such as fuel system, lubrication and cooling systems.

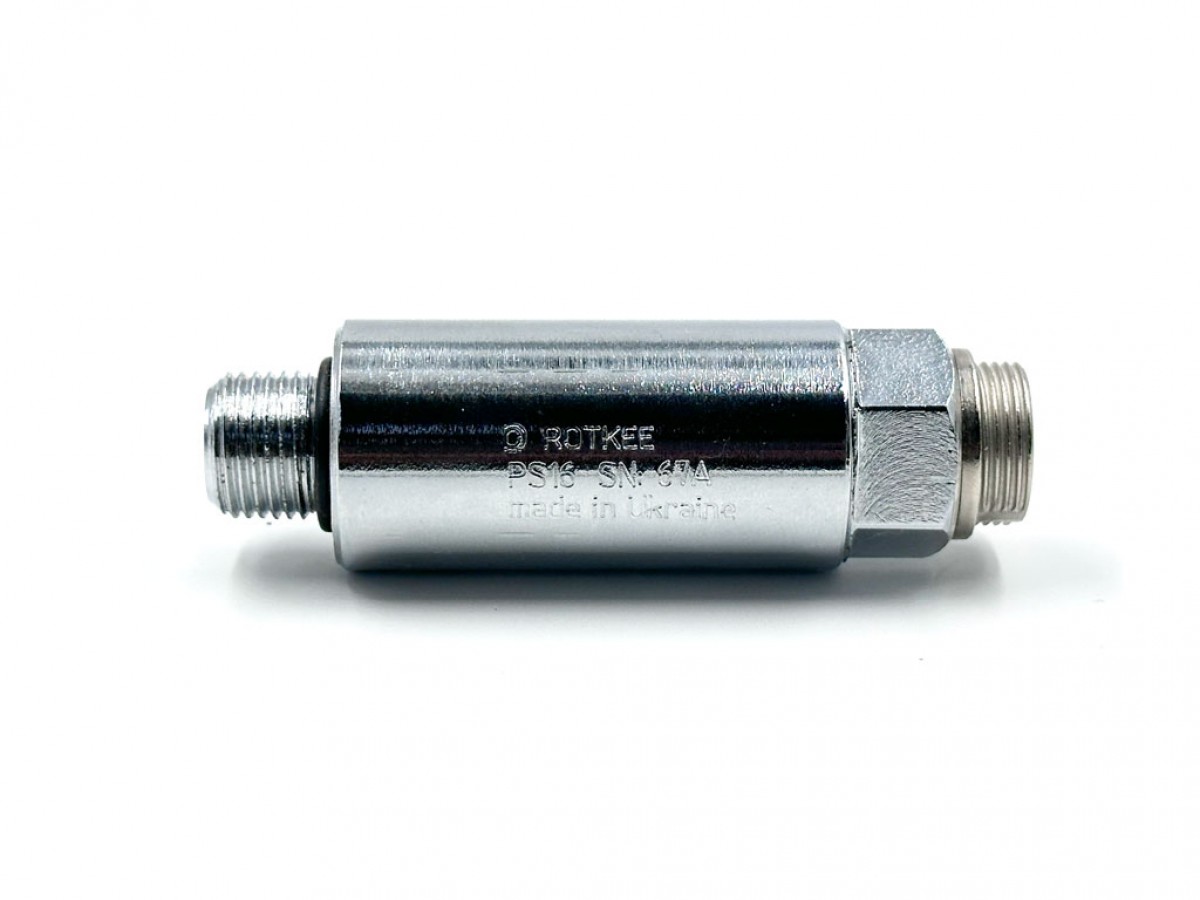

Sensor Design

PS16 automotive pressure sensor design

The sensor case is made of steel, which reliably protects it from possible mechanical damage and external electromagnetic noise. The decorative plating is nickel chrome. The connecting thread is М14х1.25. If you need to connect the sensor to another threaded connection, use one of the recommended adapters.

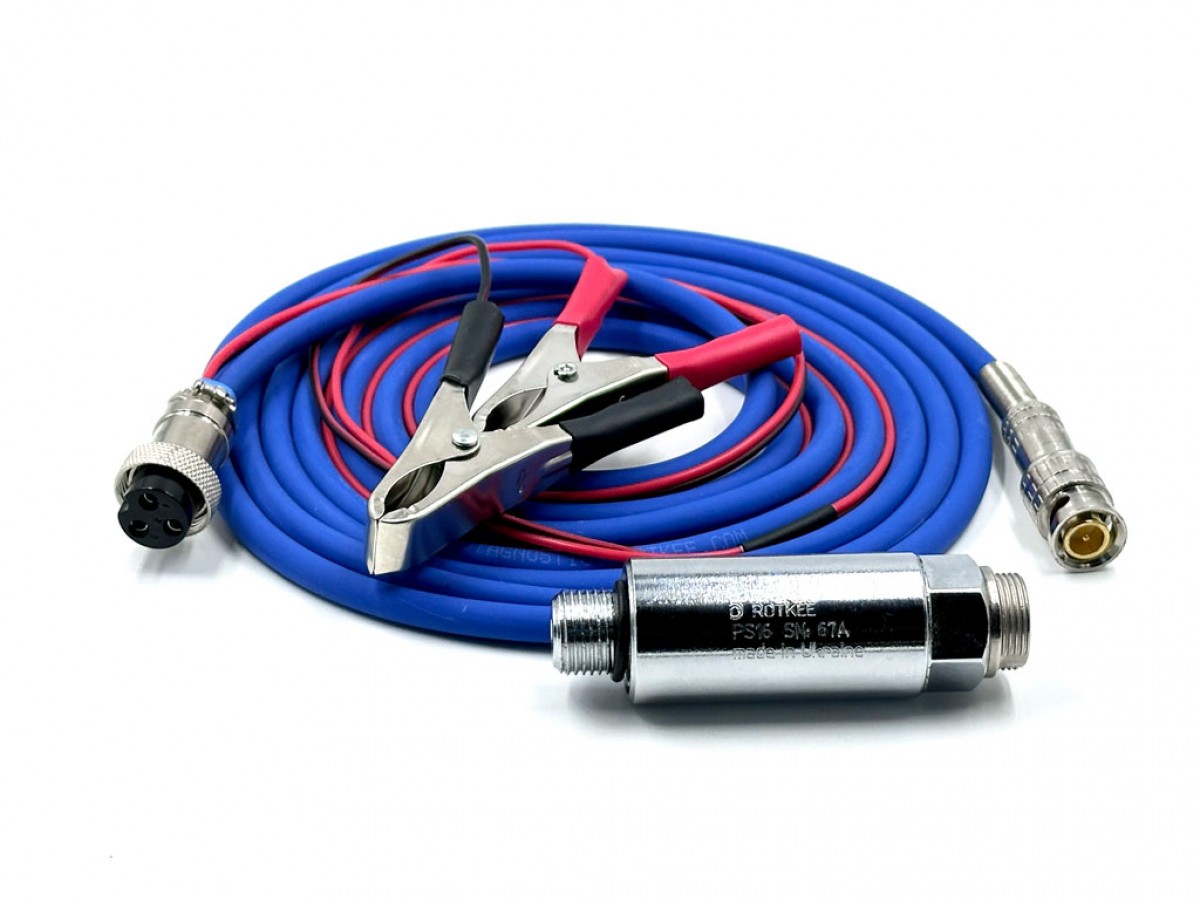

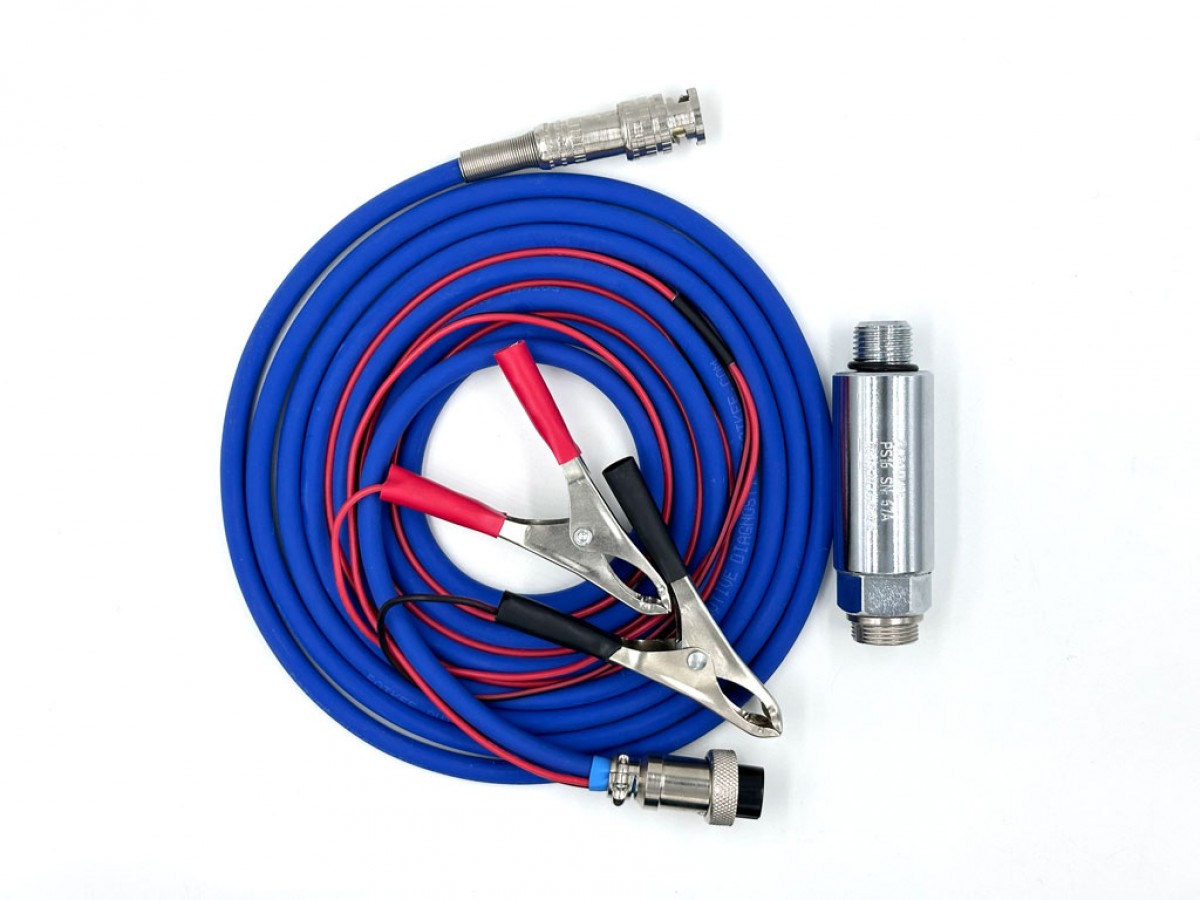

Items Included

  • PS16 pressure sensor - 1 pc
  • Connection cable - 1 pc
PS16 Pressure Transducer signal cable

The signal cable is connected to the sensor via MIC333, a three-pin connector with a latch (Pin 1 - Output Signal, Pin 2 - "GND", Pin 3 - "+12V"). A soft cable with a high density braided copper shield to minimize noise pickup so you can get high accuracy of the measured signal. Alligator clips are used for connecting to the automotive battery.

Electrical protection:

  • from the reverse polarity;
  • from the ground fault of the sensor signal output;
  • from supplying the voltage to the sensor signal output;
  • the sensor case is not connected to the negative wire, so if the sensor is screwed into the spark-plug well and the negative power wire is accidentally connected to the positive terminal of the automotive battery, there won’t be a short circuit.

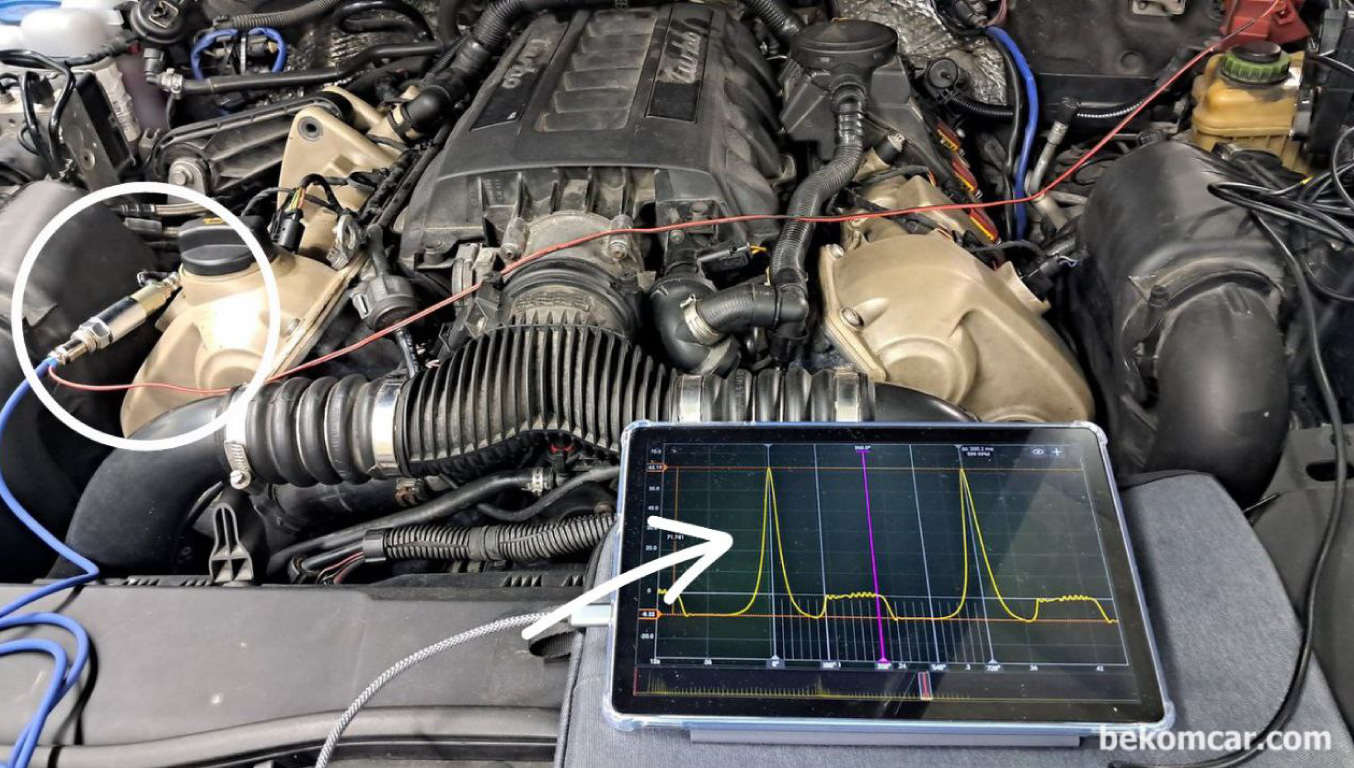

Waveforms samples

Video Tutorials

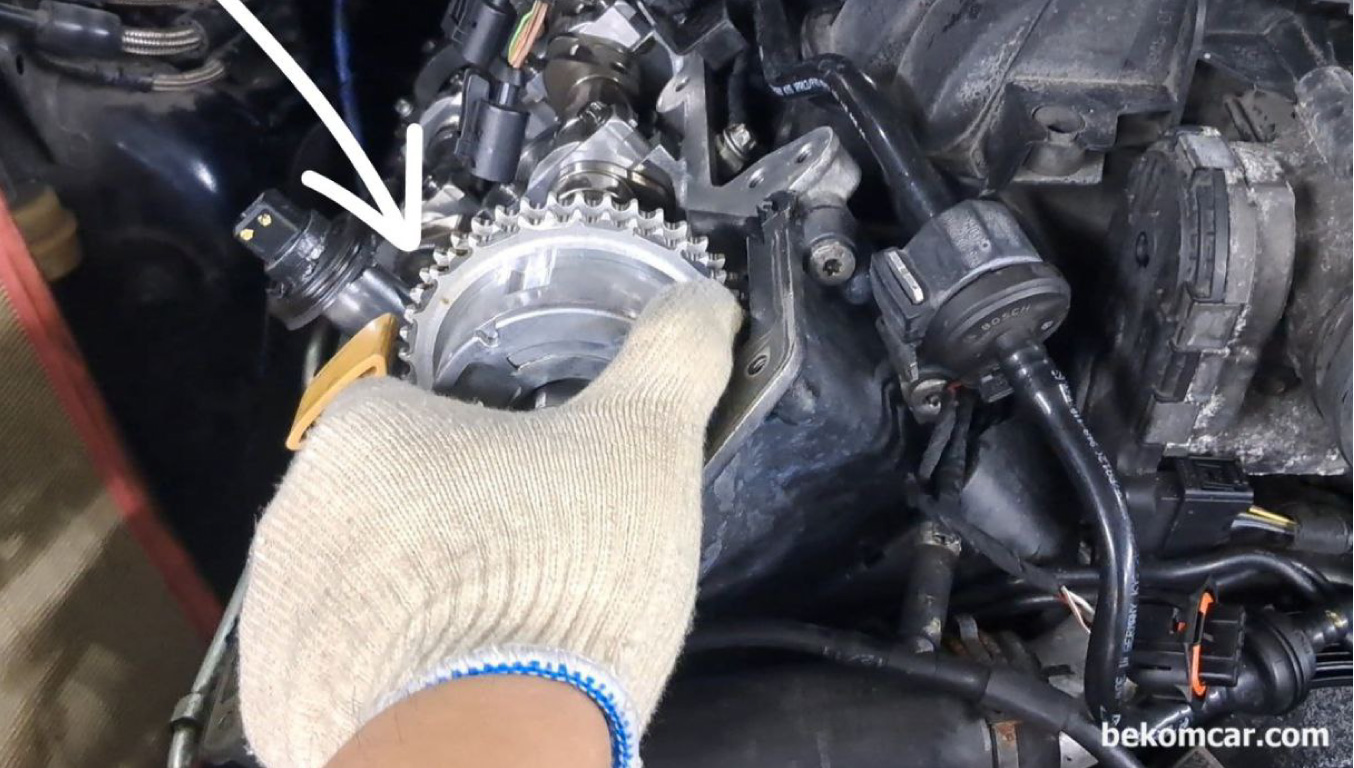

Diagnosing a timing belt system with the help of a PS16 pressure sensor and MT Pro automotive oscilloscope, connecting the sensor to the engine, oscilloscope tuning, waveform recording while idle running, increased load and cranking. I’ll demonstrate all of this on Seat Ibiza.

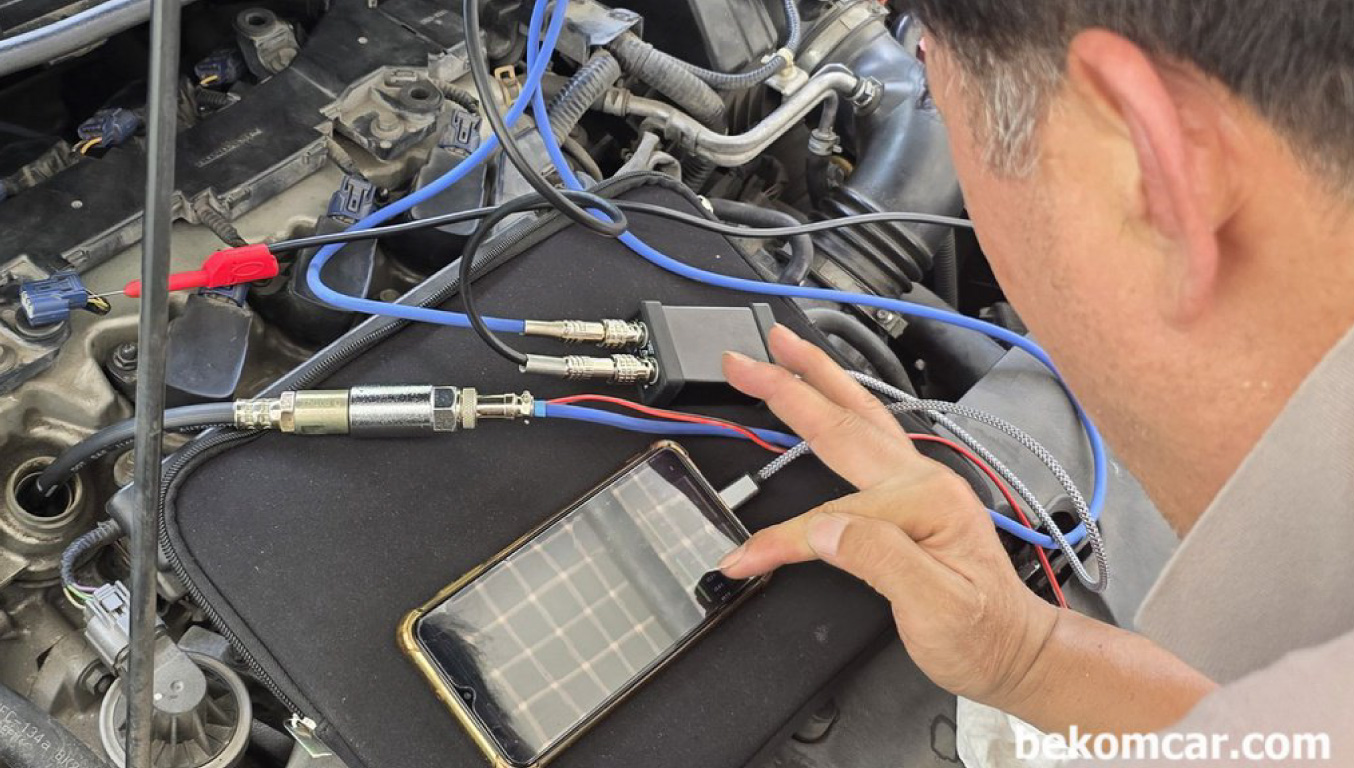

In-cylinder compression measuring of a petrol Volkswagen Golf 4 2000 1.6 during cranking using the PS16 pressure sensor and Autoscope automotive oscilloscope (39:47).


A review from "the GADGETS playlist" for the PS16 transducer

Setting up the Automotive oscilloscope to work with the PS16 transducer

The sensor can also be used with any oscilloscope and be connected to any analog channel.

Pressure conversion response

Pressure conversion response



To work with the MT Pro automotive scope, we recommend using a presetting





Conversion of pressure in PSI units in the MT Pro lab scope





Conversion of pressure in Bar units in the Pico lab scope

setting up the Pico oscilloscope for the PS16 pressure transducer in Bar



Conversion of pressure in PSI units in the Pico lab scope

setting up the Pico oscilloscope for the PS16 pressure transducer in PSI

Micsig ATO1104 oscilloscope settings:

Conversion formula Micsig ATO 1104 + PS16    Micsig ATO 1104 + PS16 in-cylinder pressure waveform

Voltage to Pressure conversion formula for other labscopes:

Y=3.4*X - 1; X Volts, Y Bar

Y=340*X - 100; X Volts, Y kPa

Y=49.3*X - 14.5; X Volts, Y PSI


Manufacturer

Manufacturer ROTKEE (Ukraine)

Mechanical characteristics

Total Cable Length 2.5 m (8.2 ft)
Output Cable Connector BNC
Output Sensor Connector MIC333
External Thread М14х1,25
Housing Material steel
Plating Nickel Chrome
Weight 280 g

Electrical characteristics

Supply Voltage 11 to 25 V
Output Signal Type analog
Output Voltage Range 0 to +5 V
Sensitivity 294 mV/bar 20.3 mV/PSI
Accuracy +/- 2%
Response Time (10% to 90%) 1 ms maximum
Supply Current 10 mA maximum

Performance characteristics

Pressure Ranges -1 to 16 bar (-14.5 to 232 PSI)
Overload Pressure 24 bar (348 PSI)
Compatible fluid types gas, petrol, diesel, oil, coolant
