Male/Female Y-Splitters Kit for measurements in automotive electronic connectors (terminals)

Availability: In Stock

  • 99.50 USD



The splitter kit is designed to measure voltages or currents (using current clamps) in car connectors. The Y-type design allows you to connect any measuring instrument (multimeter or oscilloscope) with a 4 mm banana connector to the gap of the car connector without breaking the electrical circuit and damaging the insulation.

Test Leads Design

Splitters are made of a 20AWG highly flexible silicone cable.

Includes

  • 6.3mm Male/Female flat terminal to 4.0mm banana socket - 4 pcs (black, red, green, blue)

  • 4.8mm Male/Female flat terminal to 4.0mm banana socket - 4 pcs (black, red, green, blue)

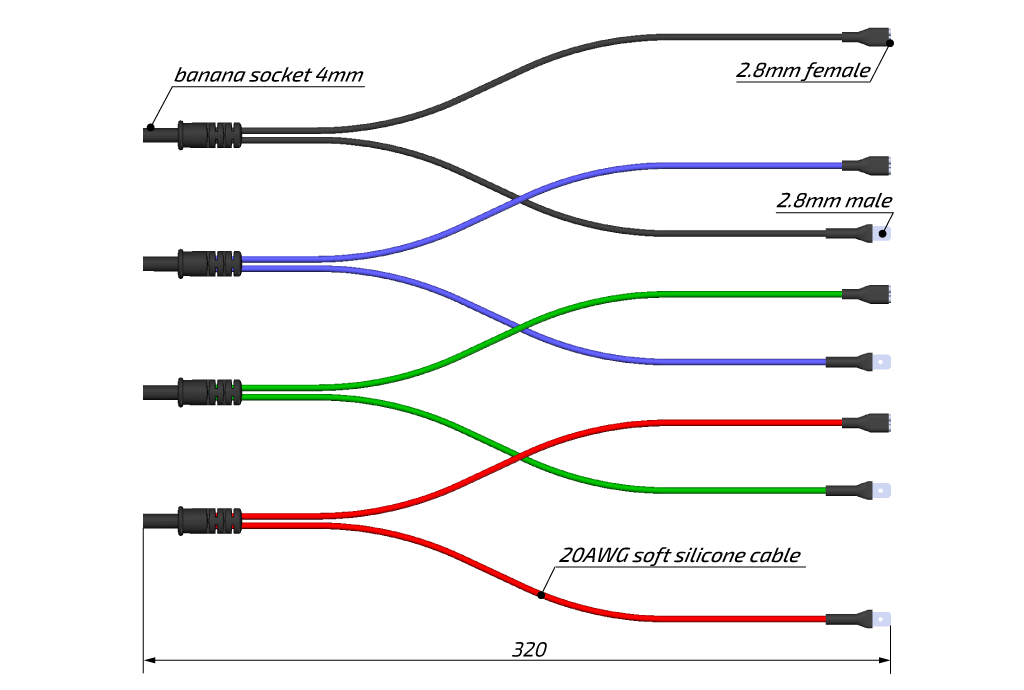

  • 2.8mm Male/Female flat terminal to 4.0mm banana socket - 4 pcs (black, red, green, blue)

  • 1.5mm Male/Female flat terminal to 4.0mm banana socket - 4 pcs (black, red, green, blue)

  • 0.8mm Male/Female flat terminal to 4.0mm banana socket - 4 pcs (black, red, green, blue)

  • 1.6mm Male/Female round terminal to 4.0mm banana socket - 4 pcs (black, red, green, blue)
