DifAmp50 Differential Amlifier x50

Availability: In Stock

37.00 USD
Qty

Short Attributes

Manufacturer ROTKEE (Ukraine)

Total Cable Length 2.5 m (8.2 ft)

Output Cable Connector BNC

Analog Channels Bandwidth 825 kHz (-3 dB)

Output Voltage Range -5 to 5 V

All Attributes

1 reviews1

The differential amplifier can be used both in single-channel mode to increase the level of low-amplitude signals, and in dual-channel mode to amplify differential signals. Single-channel mode can be used to amplify the signal from the capacitive sensor Cx1 and other low-voltage sensors. The two-channel mode is used for diagnosing DIS ignition systems (together with DIS4/DIS6 sensors) and measuring the voltage drop on power wires.

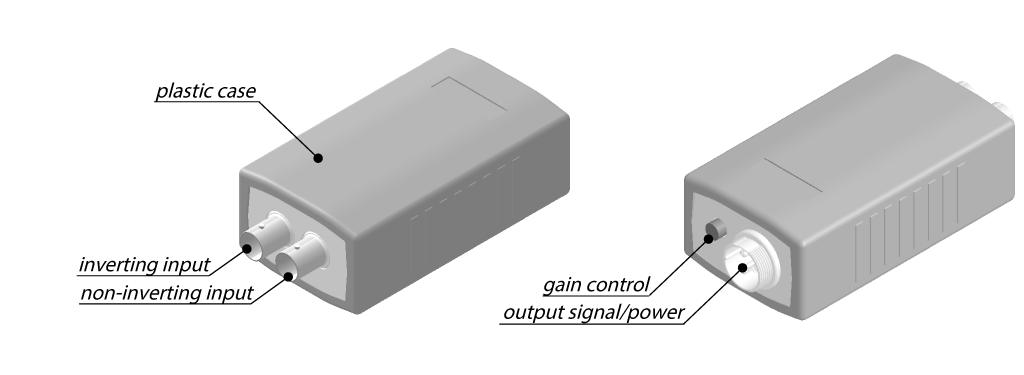

Design

The signal cable is connected to the differential amplifier via MIC323, a three-pin connector with a latch (Pin 1 - Output Signal, Pin 2 - "GND", Pin 3 - "+12V"). A soft cable with a high-density braided copper shield to minimize noise pickup so you can get high accuracy of the measured signal. Alligator clips are used for connecting to the automotive battery.
